80/120 MINI ADSS 2-12 core optic fiber cable ASU mini Adverss

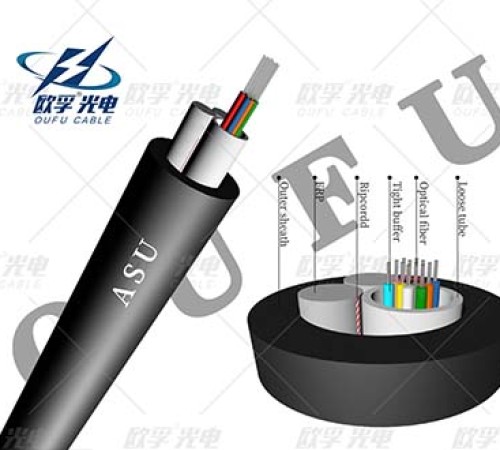

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel fiber reinforced plastic(FRP) elements are placed on the two sides.The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.

Operating :-40C to 70C
Storage:-50°C to 70C
Installation :-30C to 70
Bending Radius:
Static 10D
Dynamic 20D

Proven all-dielectric loose tube construction lmmune to electromagnetic fields Fast,

one-step installation Integrated FRP strength elementsRound cable profiles minimize wind and ice loading
FRP Filled element make cable hight tension
Tube filling gel
Loose tube stranded
PE sheath outdoor cable
Anti water yean protect cable from water

The 2~24 Fibers ASU CableAS80 and AS120) is a Self-Supported Optical Cable, lt was developed toprovide the connection between devices, being indicated for installation in urban and rural networksin spans of 80m or 120m. Because it is self-supported and totally dielectric, it has FRP strengthmember as a traction element, thus avoiding electrical discharges in the networks. lt is easy to handleand install, eliminating the need to use strings or grounding.
t is mainly used in the communication route of overhead high voltage transmission system, and canalso be used in the communication line under the environment such as lightning zone and longdistance overhead line.
ompared with the stranded ADSS Cable fibre òptica, This Cable fibre òptica can not only save the use ofimported aramid yarn, but also reduce the manufacturing cost due to the reduction of the overalstructure size. Compared with the common 150-meter span ADSS-24 Cable fibre òptica , the price ofthe This cable of the same specification can be reduced by 20% or Més..

Q1：Ets un fabricant?

Sí. Som un fabricant amb 15 anys de la història. Oferem el millor preu directe de la fàbrica.

Q2：Pots posar el meu nom de marca (logo) en aquests productes?

Sí! Oferem els serveis de OEM professionals. La nostra fàbrica pot fer que el projecte del logo és lliure per ordres molts.

Q3：Acceptes petites ordres?

A3: Sí, les petites ordres sempre estan disponibles. Donem suport als nous projectes dels nostres clients com sabem fins i tot grans origens de negocis de petites ordres.

Q4：Podeu donar més productes per ajudar-nos a estalviar més costos?

És clar. Cable OPGW, cable ADSS, cable ACSR, cable FTTH Drop, cable de fibra de l'exterior, cable de fibra dins, Accessoris de fibre cables, la corda, el porc i els cables de fibra aire són els nostres principals productes.
